Drive.

We enable the fastest assembly times. Be it ICE, hybrid, electric or hydrogen vehicles. Our connectors for automobiles are fail-safe, easy to handle, tamper-proof and traceable.

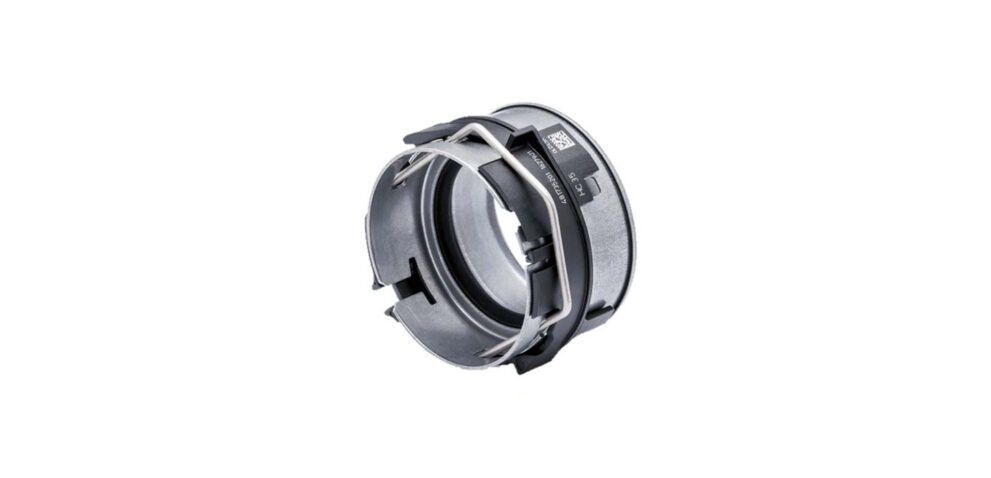

HC. WATER

The cooling water connections are made from one piece, extremely robust and resistant to coolants and corrosion. Their manufacturing process is fully automatically monitored.

  • With Data Matrix Code for traceability
  • Fully automatic assembly control and documentation
  • Individual serial numbering
  • Tool-free assembly
  • Plug-in protection
  • Rotation protection on both sides
  • Temperature: -40 to +135 °C
  • Pressure: 0.001 to 6.0 bar

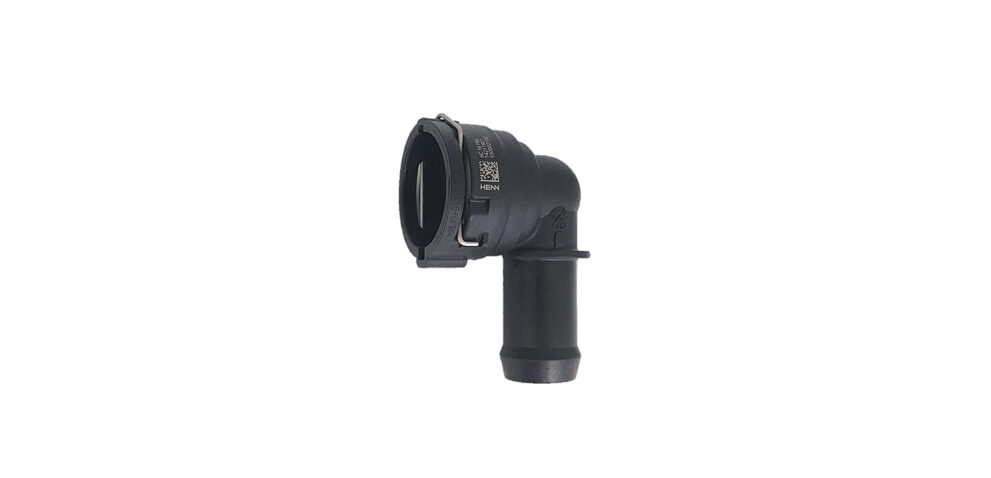

HC. FLUID P

The compact connectors are made of environmentally friendly recycled material, tamper-proof and traceable. We offer them in different shapes, suitable for ICE, hybrid, electric or hydrogen vehicles.

  • With Data Matrix Code for traceability
  • Fully automatic assembly control and documentation
  • Individual serial numbering
  • Temperature: -40 to +135 °C
  • Pressure: 0.001 to 6.0 bar

HC. PORT

Manufactured using a cost-effective thermoforming process, the port offers ease of handling and can be used for a wide range of applications.

  • Customized Design
  • Material: SuperDyma TM, aluminum, stainless steel 1.4301
  • Temperature: -40 to +135 °C
  • Pressure: 0.6 to 6.5 bar

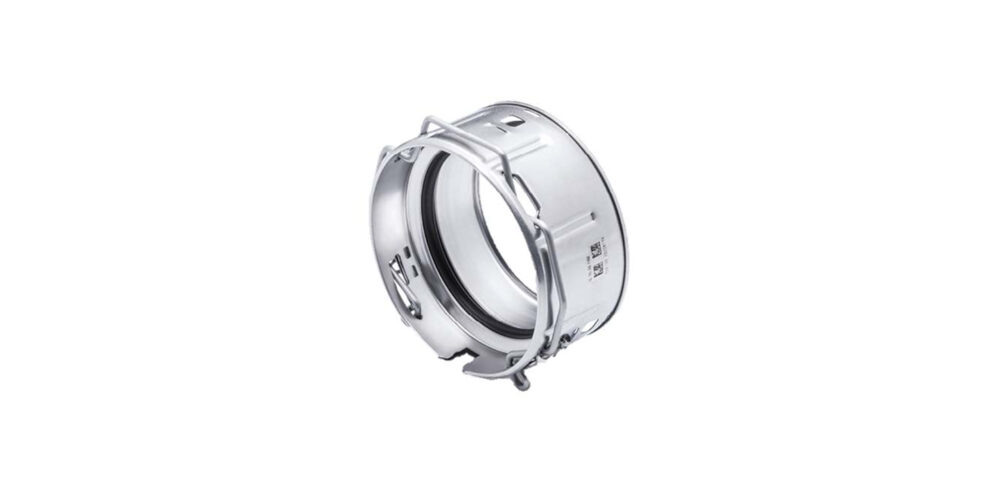

HC. AIR

The robust charge air connectors offer low assembly forces and are made from one single stainless-steel part. This makes them particularly stable and corrosion resistant. They are also tamper-proof and traceable.

  • With Data Matrix Code for traceability
  • Fully automatic assembly control and documentation
  • Individual serial numbering
  • Tool-free assembly
  • Inner/outer rotation lock
  • Protection against one-sided engagement
  • Material: stainless steel 1.4310/1.4301
  • Temperature: -40 to +160 °C
  • Pressure: 0.6 to 6.5 bar
Automotive - Charge
